◇Base
It’s made of premium stainless steel or hot-dip zinc with anti-corrosion treatment process and can meet a variety of outdoor requirements and ensure reliable operation and corrosion resistance. The use of square neck bolts with square hole on the floor is convenient for the actual installation.

◇ Supporting insulators

1 silicone rubber insulators
The insulators are stressed and injected with imported silicone rubber, with premium surface quality, big creep distance, light in weight, strong weather resistance. It not only reduces the weight of the product supremely, but also has good hydrophobic properties, with the design products of the big creep distance reached 12 kV IV level, 24kV III contamination level.

2 epoxy resin insulators
Insulators are stressed and injected with imported high-performance outdoor epoxy resin, and have the ability of strong corrosion resistance and outdoor anti-UV aging. It has good hydrophobic insulation and self-recovery ability, nice appearance, and creep distance to meet the requirements of IV level contamination level.

◇ Major loop design
Dominant electrical circuit components are made of high strength copper material and the silver-plated process, with good conductivity. Coupled with the design of symmetrical double-static contact, it can effectively reduce contact resistance and contact temperature, and further improve the conductivity, together with good closing orientation for operation, small contact wear , stable operation and more reliable performance.
Contact pressure is achieved through a tile-shaped spring and fastening bolts and other special process to ensure uniform contact pressure and reliable operation.

◇ Terminal blocks
Terminal block is made of double-hole copper wiring. The size and spacing of row-hole is in line with domestic usage and easy for installation.

◇Inhibiting device

By adjusting the pin position, you can choose 90 °, 160 ° or without position limit as needed. The factory default mode is 160 °.

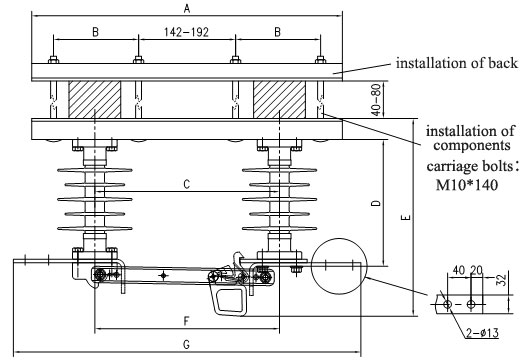

Inhibiting chart:
(For details, please refer to the product manual)

◇pull ring for operation
The leverage design of TAB and convey lock pin is easy for opening operation and improves icebreaking capability.

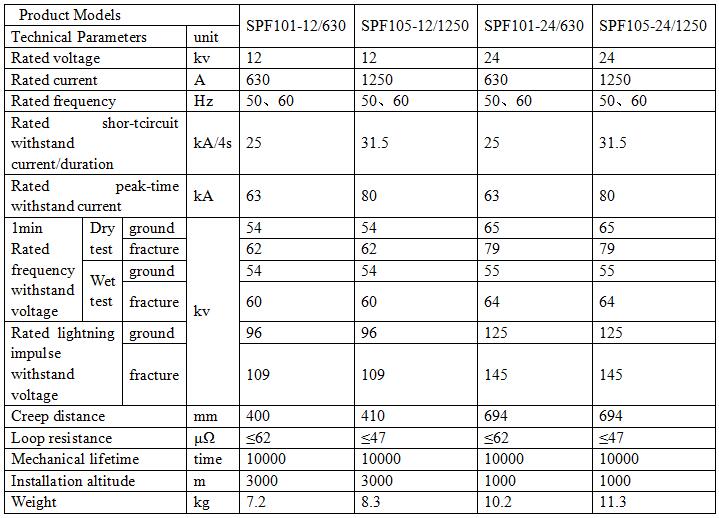

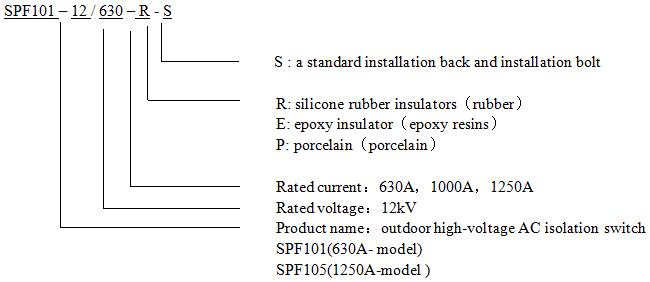

For example: SPF101-12 / 1250-R-S, represents outdoor 12kV isolation switch, rated current of 1250A, with the use of silicone insulators, including standard installation back and bolt.
